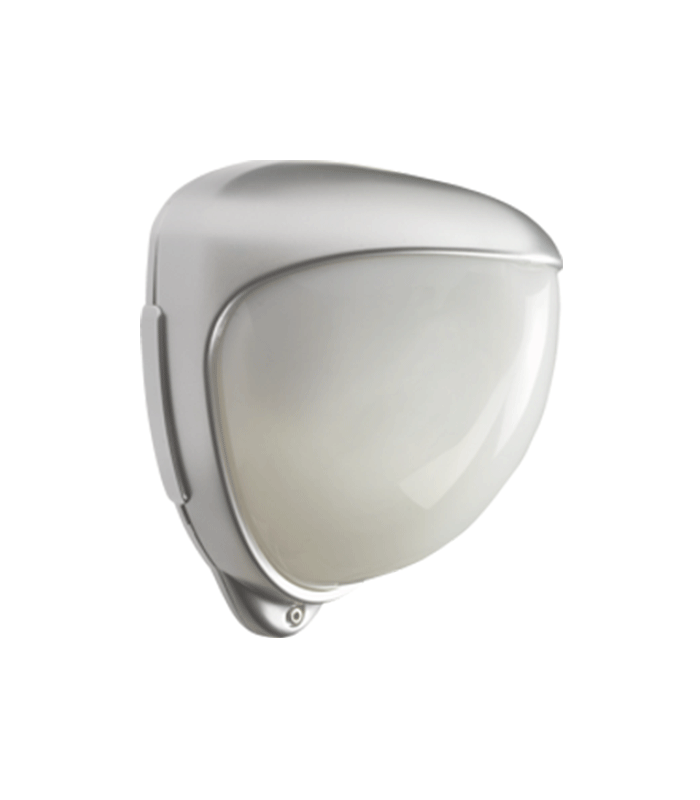

External PIR Detector is IP55 rated, 10 to 35 metre and 90 degree fully adjustable. It is an inconspicuous and proven 35-metre external passive infrared detector. 24 hour indication and movement activated lighting for a timed period is automatically provided. Additionally, when positioned to individual requirements the module is protected with a UV stabilized lens cover which hides areas of coverage. ELITE PIR Detector The Elite offers a high level of adaptability. There are seven different modes of operation, giving various permutations of normally open and normally closed arrangements for the two pairs of volt-free relays, plus a selection of timing and functional options for the relay changeover contacts. Other programmable parameters include the duration of timed changeover, a pulse count feature and a choice of detection ranges from 10 to 35 metres. FEATURES & BENEFITS Digital ASIC/microprocessor control Output test mode with LED indication Area reduction mask (if required) Non – volatile memory Digital white light filter Wall or pole mounting Conformally coated electronics for increased stability High immunity against RFI BSEN50081- 1:1992 High resistance to EMC-BSEN 50130- 4:1996 GJD’s 100% test verification
