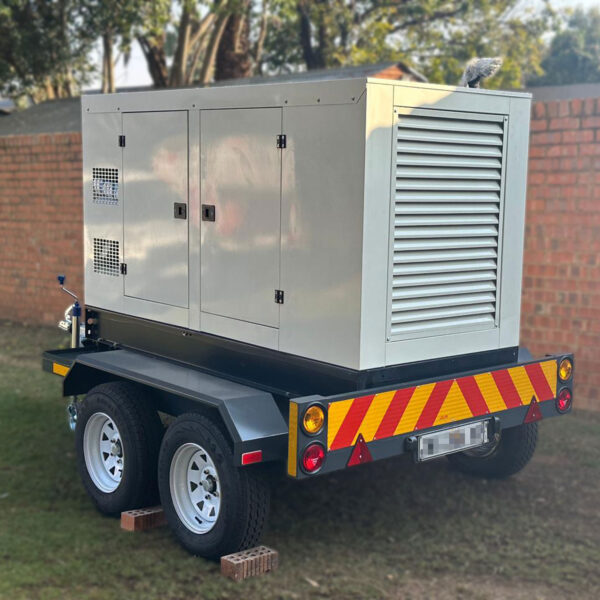

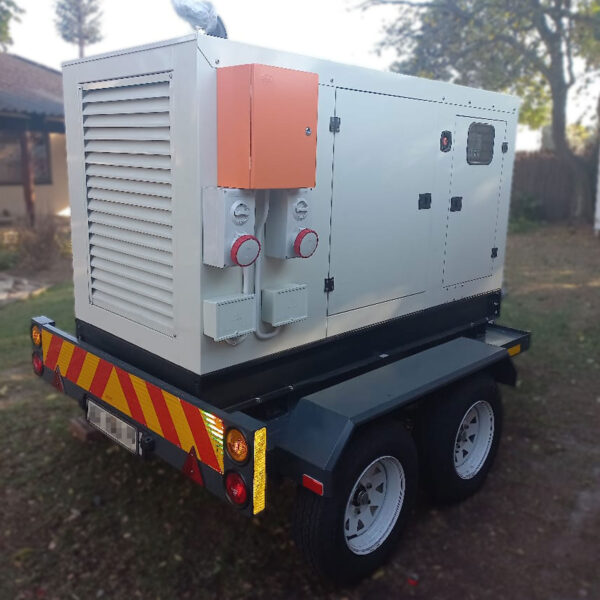

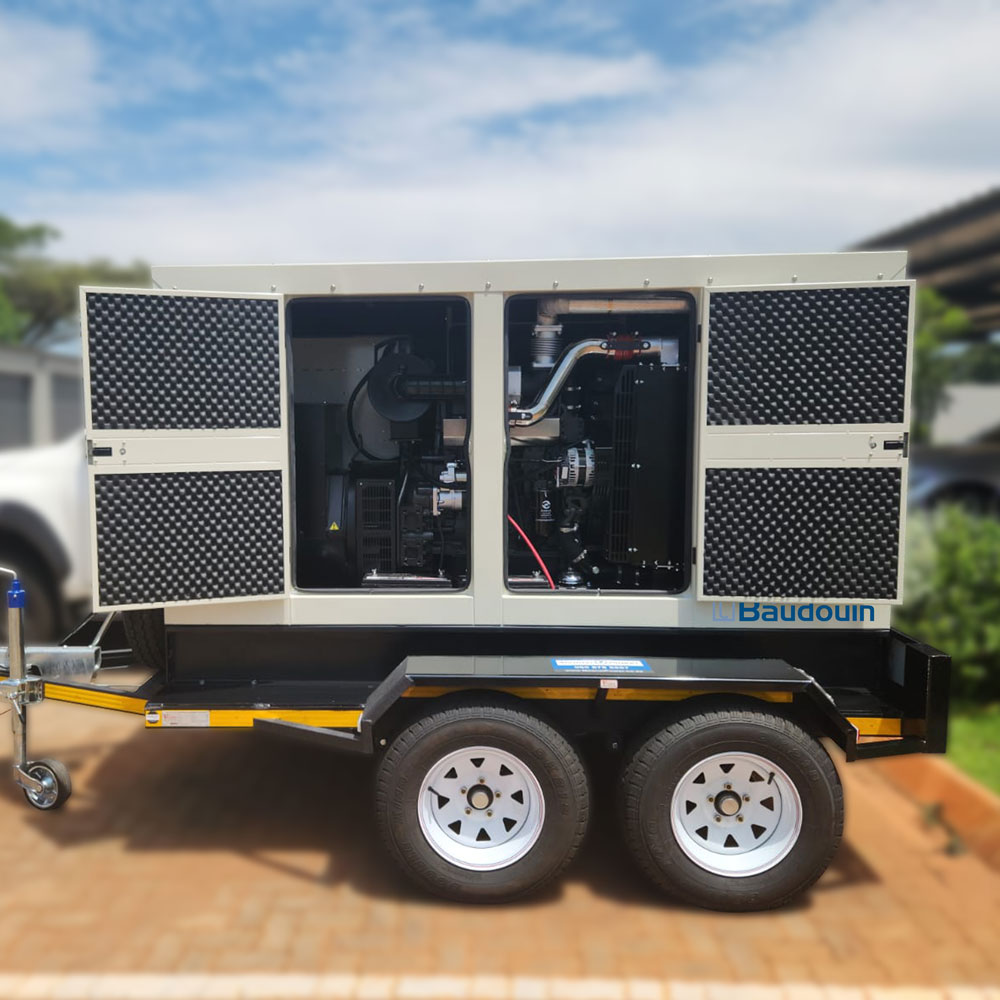

Description OVERALL HIGHLIGHTS Output: Maximum 22kVA standby, 230V, 1500RPM Engine: Powerful 4-Cylinder Baudouin Diesel Fuel Stats: 150 litre tank: 33 Hour Runtime @75% load Noise Stats: Est.72dB (Not Confirmed) Alternator: Brushless 1-Phase Stromer Power Controller: Convenient SmartGen HGM420N Trailer: 2600kg GVM Double Axle Trailer with Brakes Warranty: 1,000 hours / 12 months. Whichever comes first ENGINE Manufacturer: Baudouin Model: 4M06G25/5 Type: Four (4) cylinder Displacement: 2.3l Cylinder bore/stroke: 89mm x 92mm Air intake: Normally aspirated Engine speed: 1500RPM Engine output: 22kW Combustion system: Direct injection Compression ratio: 17.5:1 FUEL Fuel type: Diesel Fuel system: In-line fuel injection pump Fuel pump: Electronic Fuel tank capacity: 150l Fuel consumption @ 25%: 2 l/h Fuel consumption @ 50%: 3.2 l/h Fuel consumption @ 75%: 4.5 l/h Fuel consumption @ 100%: 6.1 l/h LUBRICATION Oil type: 15W40 Oil capacity: 9.5l COOLING Cooling method: Radiator water-cooled Coolant capacity (engine only): 8.2l ELECTRICAL Starter: 12v DC starter and charge alternator Governor system: Electronic Battery: Maintenance-free battery including rack and cables ALTERNATOR Manufacturer: Stromer Power Model: SP2-G20D8 Type: Brushless Standby power: 22kVA Prime power: 20kVA Insulation class: Class-H with circuit breaker protection Phases and connections Single phase, two wire Automatic voltage regulator (AVR): Included (SX460 Model) ± 1% regulation Voltage: 230V Rated frequency: 50Hz Voltage regulate change: ≤ ±10% UN Phases change rate: ± 1% Power factor: 1φ Protection class: IP23 Standard | Screen protected | Drip-proof Strator: Single bearing Excitation: Self-exciting Regulation: Self-regulating CONTROLLER & ATS Manufacturer: SmartGen Model: HGM420N Type: LCD Safety: Automatic shutdown protection Changeover Switch: Included Changeover Options: Manual or Automatic Auto Changeover Scheduling: Yes, Schedule non start times Remote Control (via App): Not Included (Optional) Remote Monitoring (via App): Not Included (Optional) CHASSIS & CANOPY Chassis base frame: Heavy duty steel base frame with integral fuel tank Chassis design: Designed for careful lifting/pushing/pulling Canopy type: Silent weather-resistant enclosure Ventilation: Modular louvre design Coating: Powder Coated Accessibility: Lockable doors on each side and removable modular panels Exhaust insulation: Thermally insulated Sound attenuated: Fitted with sound reducing foam lining ELECTRICAL OUTLETS 230V 3-Pin Outlets 4 380V 5-Pin Outlets 0 Circuit Breakers Yes Surge Protection Yes TRAILER Roadworthy Certificate Included Axles 2 x 1.6ton axles with a 2.7ton Gross Vehicle Mass (GVM). Wheels 4x 14” Spare Wheel 1x 14″ on the A-Frame Frame 76mm x 38mm x 5mm thick open channel A-frame and chassis with 3 cross beams. Coupler: 2.7 Ton Jockey Wheel 60mm Chevron Yes (At the back) Lights LED Paint Black 2K DUCO Anti-Theft Wheel Locking System Not Included (Optional) Anti-Theft Alarm System Not Included (Optional) OTHER Pre-Delivery Testing Yes, filled with oil and coolant, tested under full load. Pre-Delivery Inspection (PDI) Yes, full inspection of generator User Manuals Yes, available for download online DOWNLOADS Engine Specification Sheet Alternator Specification Sheet Controller Specification Sheet FREQUENTLY ASKED QUESTIONS Does the price include installation? No, the price doesn’t include installation. Installations are all different and require varying length of cable, time and distances to be travelled. In addition to this installations need to be done by a qualified electrician to issue a valid Certificate of Compliance (COC) for your insurance. We will gladly recommend a qualified local installer, please ask your Sales Consultant for more information. Installers are independent third parties and are used at your own discretion. How does payment work? Here’s a breakdown of our payment process for generators:In-stock Items: These must be paid for in full before collection or delivery.Generators Below 200kVA: If components need to be imported, a 30% deposit is required. If components are in stock, a 30% deposit starts production. The balance is due 2 days before the estimated completion date.Generators Above 200kVA: Full payment is needed before production starts.NOTE: All generators must be paid in full before collection or delivery. No generator will be released without a valid payment confirmation and delivery note. Additionally, payments must be reflected in our account to secure pricing, and components, or to start production. A purchase order alone does not confirm an order. Ensure timely payments to prevent delays. Does the price include delivery? All prices exclude delivery. Delivery is charged extra based on the distance of the delivery. Does the price include a ATS (Automatic Changeover Switch)? Please review the generator specifications above to confirm if the generator has a built-in ATS, or whether you need to purchase one separately. Tell me about the Warranty? All generator warranties are limited warranties. Travel to the site is not included in the warranty. The goods need to be returned to us or a call-out will be charged. Please refer to our Terms and Conditions and the Warranty Card for further information on the warranty. What is the Price Validity? Pricing is valid whilst stock lasts and is subject to change without prior notice. Pricing on the website is indicative and should always be confirmed by Mzansi Power in the form of a written quotation. Can I make the generator quieter? Silent generators are designed to minimize sound and optimize airflow through the generator canopy. Any restriction of the airflow in any way will lead to the generator overheating and it will cause damage to the generator.We do not recommend using any after-market silencing solutions, this will likely void your warranty and could be a fire hazard.Generators should be installed outside with at least one meter clear around them to allow for optimal working conditions. DO NOT install inside a room without appropriate ventilation. Will my generator rust? The standard canopies are made of powder-coated mild steel. While this provides some protection against the elements, rust may still form over time. In coastal areas, it’s advisable to regularly wash the generator to prevent salt accumulation.OPTIONAL upgrades to an aluminum canopy and a galvanized base are available for certain models. For models not eligible for this upgrade, we can refer you to a third-party service provider who offers specialized coatings. Both the aluminum and galvanized upgrades, as well as the specialized coatings, offer enhanced rust resistance, making them more suitable for coastal conditions. Please consult with your sales consultant for more info on these options. PLEASE NOTE: This product must be serviced by a certified mechanic. A Service Report must be completed during each service to maintain the validity of the warranty. × PLEASE NOTE: All ratings are approximate and based on sea level conditions. Engines should be de-rated for altitude and continuous operation. As a guideline, performance should be de-rated by 1% for every 100m above sea level. For example, a 20kVA generator at sea level is equivalent to an 18kVA generator at 1000m above sea level (a 10% reduction). For sustained operation, it's advisable to operate a generator below 70% of its prime rated capacity to ensure longevity and optimal performance. Continuously running a generator between 70-85% of its capacity can risk overheating, with the exact threshold influenced by factors such as ventilation, humidity, and ambient temperature. The generator isn't designed to handle its full load immediately. Instead, loads should be introduced gradually, starting at 50% and increasing incrementally as the engine warms up. × Mobile Generator | Mobile Generator for Sale | Generator on Trailer | Generator on Trailer for Sale | Mobile Generator Price | Mobile Diesel Generator | 20kVA Mobile Generator | 20kVA Mobile Diesel Generator | 20kVA Mobile Power Generator | 22kVA Mobile Generator | 22kVA Mobile Diesel Generator | 22kVA Mobile Power Generator | 20kVA Mobile Single Phase Generator | 22kVA Mobile Single Phase Diesel Generator | Baudouin Mobile Generator
